UMAX® Range Picker
UMAX® Range Picker

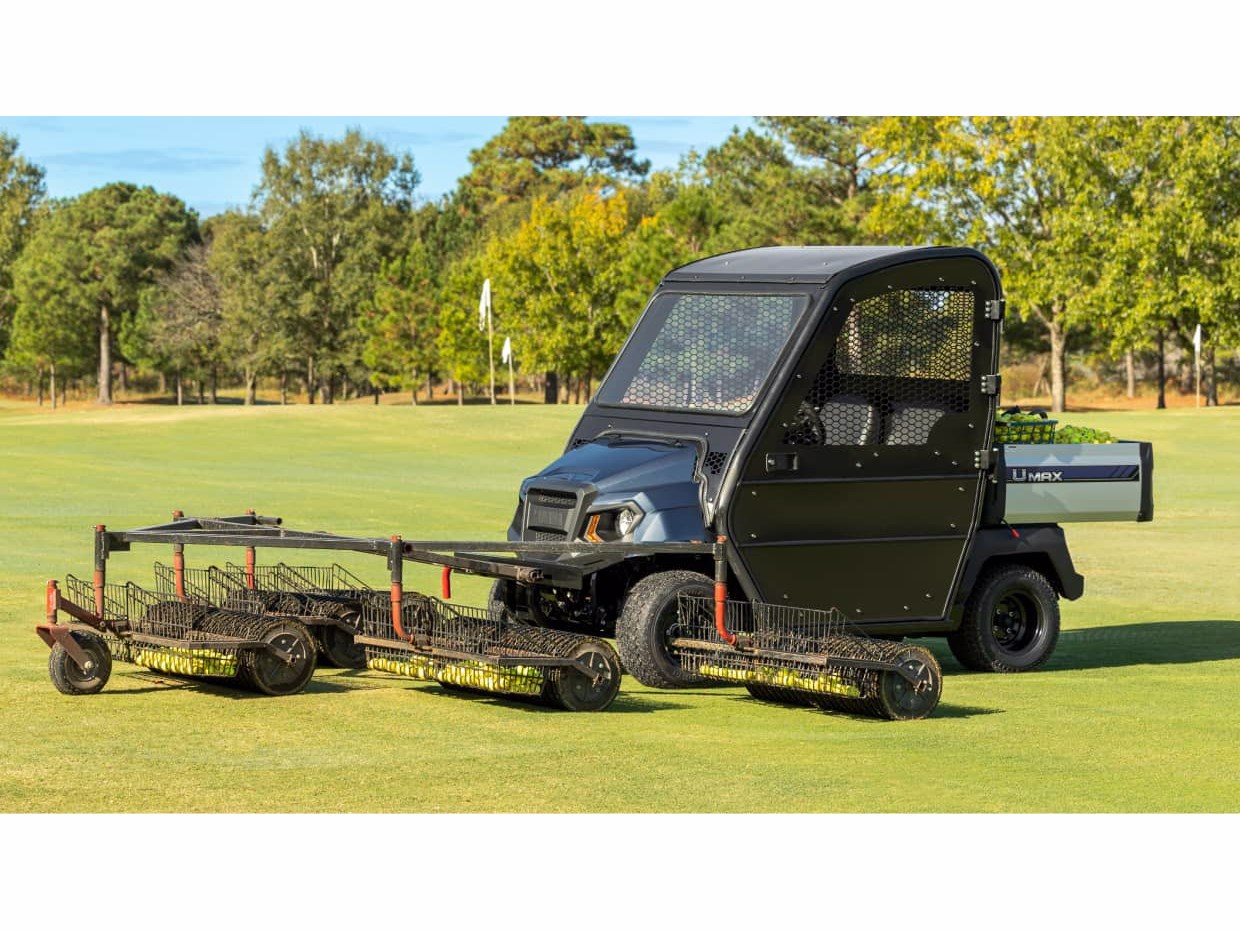

Driving range picker
Outfitted with a strong diamond-webbed steel cage and an impact-resistant front windshield, discover the same Range Picker you already know and love — but this time, with an upgraded 402cc engine for premium torque and power.
- Bluestone
- Carbon
- Coral Red
- Evergreen
- Glacier
Our UMAX lineup was expertly designed to get the job done. The UMAX EFI combines premium power and torque to deliver the performance you need for any job big or small. If gas works best for you, then trust our EFI powertrains to fit your needs with efficiency and reliability.
| Rear Suspension | Cradle-Smooth Suspension |
| Front Suspension | Independent Front Suspension |
| Yamaha-Built Engine | 357cc, low-emission single cylinder 60° incline OHV |
| Miles Per Gallon | 45 mpg |
| Easy Access Engine Compartment | Standard |
| Additional Features | 60.5 dB reduced engine noise |
THE TRIFECTA OF SPEED, RANGE AND RELIABILITY
Combining Yamaha’s signature power and ruggedness with cutting-edge lithium technology, UMAX Li is the efficient, stress-free choice for your golf course or utility needs. With a maintenance-free battery that's built to last, it offers greater longevity, more efficient charging, and a longer driving range to keep you going all day.
| Rear Suspension | Cradle-Smooth Suspension |
| Front Suspension | Independent Front Suspension |
| Battery | Lithium-Ion |
| Toyota MCU | Standard |
| Power Production | 6.7 hp (5.0 kW) |
| Delta-Q Charger | Standard |
| Additional Features | Zero Maintenance - No Watering |
INNOVATIVE FEATURES AT EVERY TURN
UMAX® Range Picker SPECIFICATIONS
- Dry Weight: 421.8 kg
- Cargo Bed Capacity: 300 lbs
- Towing Capacity: 800 lbs
- Cargo Bed Size: 33.2" L x 45.9" W x 11.9" H
- Fuel Tank Capacity (Gas): 5.2 US GAL (20 LITERS)
- Tire Size: 20x10x10 4ply Monitor K389 (front) K500 (rear)
- Seating Capacity: 2 persons
- Available Model Colors: Glacier Metallic: Jasper, Carbon, Aqua Blue, Noble Orange, Evergreen
- Available Seat Color: Black
- Available Suntop Color: Black
- Overall Length: 111.45 in (283.1 cm)
- Overall Width: 49.33 in (125.3 cm)
- Overall Height(with suntop): 71.81 in (182.4 cm)
- Overall Height(without suntop): 48.54 in (123.3 cm)
- Wheelbase: 66.18 in (168.1 cm)
- Front Wheel Tread: 39.96 in (101.5 cm)
- Rear Wheel Tread: 40.19 in (102.1 cm)
- FRAME: HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat.
- STEERING: Self-compensating double reduction helical rack-and-pinion.
- FRONT WHEEL SUSPENSION: Tru-Trak II™ fully independent automotive-style strut suspension.
- REAR WHEEL SUSPENSION: Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers.
- BRAKES: Self-adjusting mechanical, rear wheel drum brakes.
