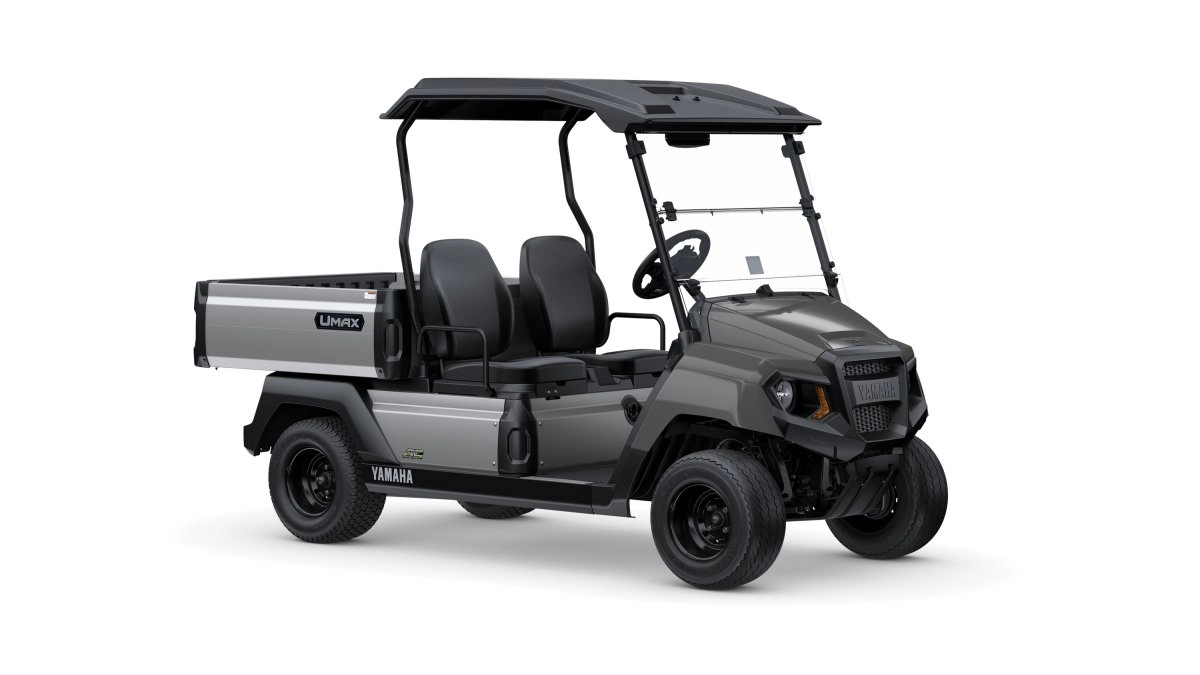

2027 UMAX
SPECIFICATIONS
GENERAL
| Cargo Bed Capacity |
800 lbs. |
| Cargo Bed Size |
41.1in L x 45.9in W x 11.8in H |
| Towing Capacity |
1,500 lbs |
| Seating Capacity |
2 persons |
CHASSIS
| Suspension (Front) |
Tru-Trak II™ fully independent automotive-style strut suspension. |
| Suspension (Rear) |
Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers. |
| Brakes |
Self-adjusting mechanical, rear wheel drum brakes. |
| Tire Size |
20x10x10 4ply Monitor K389 (front) K500 (rear |
| Frame |
HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat. |
| Steering |
Self-compensating double reduction helical rack-and-pinion. |
DIMENSIONS
| Overall Length |
119.3 in (303.0 cm) |
| Overall Width |
49.4 in (125.5 cm) |
| Overall Height |
48.6 in (123.5cm) |
| Overall Height With Suntop |
71.6 in (182.5 cm) |
| Wheelbase |
77.2 in (196.1 cm) |
| Wheel Tread (Front) |
40.4 in (102.5 cm) |
| Wheel Tread (Rear) |
40.2 in (102.0 cm) |
| Min Ground Clearance |
4.5 in (11.5 cm) |
| Curb Weight*** |
1,462 lbs. (663 kg) |
PERFORMANCE
| Max Forward Speed |
19.5 mph (31.4 km/h) |
| Max Reverse Speed |
6.2 mph (10 km/h) |
| Min Turning Radius |
4.0 m (13.1 ft) |
ENGINE
| Motor |
48-volt AC Motor |
| Batteries |
Standard: Eight 6-volt Trojan® T-105 batteries. |
| Motor Control Unit |
Toyota® Industries-built motor controller unit. |
| Output Rating |
6.7 hp (5.0 kW) |
| Charger |
Delta-Q Charger |
OTHER
| Available Model Colors |
Glacier, Frosty Fern, Carbon |
| Available Seat Colors |
Black |
| Available SunTop Colors |
Black |
| Warranty |
Standard 2-year limited vehicle warranty |
*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Curb Weight/Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
