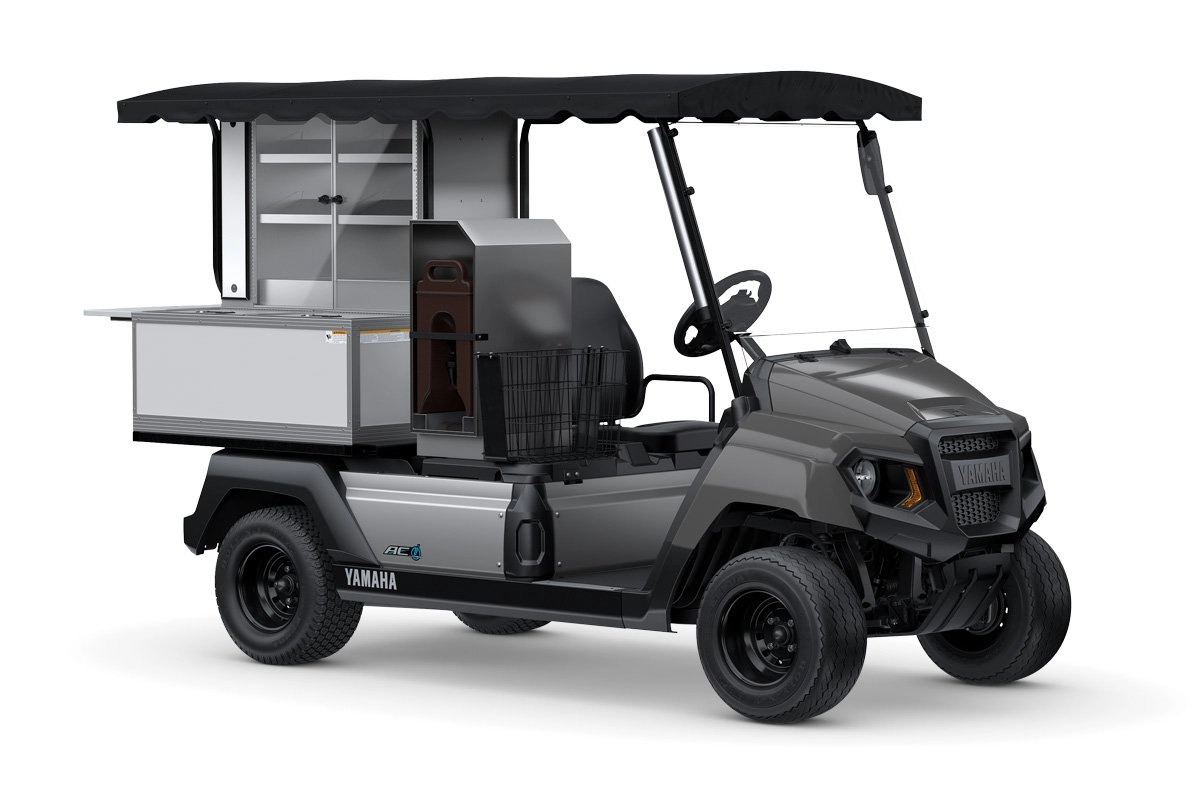

2027 UMAX BISTRO
SPECIFICATIONS
GENERAL
| Cargo Bed Capacity |
730 lbs |
| Cargo Bed Size |
41.1in L x 45.9in W x 11.8in H |
| Cargo Box Material |
Aluminum |
| Towing Capacity |
1500 lbs (680 kg) |
| Seating Capacity |
2 persons |
CHASSIS
| Suspension (Front) |
Tru-Trak II™ fully independent automotive-style strut suspension. |
| Suspension (Rear) |
Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers. |
| Brakes |
Self-adjusting mechanical, front and rear wheel drum brakes. |
| Frame |
HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat. |
| Steering |
Self-compensating double reduction helical rack-and-pinion. |
DIMENSIONS
| Overall Length |
127.6 in (324 cm) |
| Overall Width |
49.4 in (125.7 cm) |
| Overall Height |
48.6 in (123.5 cm) |
| Overall Height With Suntop |
72.2 in (183.5 cm) |
| Wheelbase |
77.2 in (196.1 cm) |
| Wheel Tread (Front) |
40.27 in (102.3 cm) |
| Wheel Tread (Rear) |
40.19 in (102.1 cm) |
| Min Ground Clearance |
4.5 in (11.5 cm) |
| Curb Weight*** |
1222 lbs (554 kg) |
PERFORMANCE
| Max Forward Speed |
19.5 mph (31.4 km/h) |
| Max Reverse Speed |
6.2 mph (10 km/h) |
| Min Turning Radius |
4.0 m (13.1 ft) |
ENGINE
| Motor |
48-volt AC |
| Batteries |
RoyPow S51105PE (51-Volt) |
| Motor Control Unit |
NEOS 350 amp AC controller by Toyota Industries Corporation |
| Output Rating |
6.7 hp (5.0 kW FOR 60 minutes) |
| Charger |
Delta-Q Charger |
OTHER
| Available Model Colors |
Glacier, Carbon, Frosty Fern |
| Available Seat Colors |
Black |
| Available SunTop Colors |
Black |
*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Curb Weight/Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
